Key metrics
Product | Typical dimensions |
| Length | 13.5m |
| Width | 4.2m |
| Height | 4.2m |
Packaged Plant Rooms (PPR) are preassembled, factory-tested MEP modules designed using DfMA to accelerate delivery, improve programme certainty and quality. BIM-coordinated and maintainable, they minimise person hours on site, reduce risk and disruption, and integrate heating, cooling, water and controls, ensuring compliant plant for healthcare, commercial, infrastructure and regulated environments.
- Heating and cooling: heat pumps (air/water/ground), CHW/LTHW generation, thermal stores, plate heat exchangers
- Energy systems: CHP, boilers (gas/oil/electric), flues and dilution systems, BEMS integration, metering
- Water systems: cold water storage, booster sets, filtration and treatment, softeners, dosing
- Supports main plant items such as pumps, chillers, fans, plate heat exchangers, Electrical switch panels
- Ventilation systems, DX Systems and Controllers
- Leak detection and evacuation systems
- Electrical switch panels, ATS, Harmonic Filters
- Electrical and controls: distribution boards, control panels, BMS field devices, fire alarm interfaces, emergency lighting in plant space
- Full Electrical and controls wiring installation, testing and certification
- Building fabric: modular enclosures, access doors, louvres, platforms and handrails, acoustic and thermal insulation
- Ancillaries: chemical dosing, pressurisation units, expansion vessels, strainers, valves, gauges, drip trays, leak detection
- Structural/support: skid frames, bases, lifting frames, vibration isolation, builder work details for openings and plinths
- DfMA-led engineering using repeatable standard modules adapted to project-specific requirements
- BIM-enabled coordination (3D/4D/5D)
- Maintainability embedded at concept and detail stages
- Commissioning strategy embedded throughout concept and detail stages
- Early engagement to confirm operational requirements and redundancy levels
- Building Regulations, BS, EN and CIBSE guidance
- Pressure Equipment Safety Regulations, PED/UKCA and water regulations
- BS EN 12845 and healthcare HTMs where applicable
- BS 7671 electrical compliance
- Controlled factory environment with testing and QA stage gates
- FAT documentation and BIM aligned asset labelling
- UKCA/Kitemark where applicable and full traceability
- BS 99001 / ISO9001 Quality management
- Factory production EN 1090-2:2009+A1:2011 to Execution Class 3(EX3)
- Just-in-time delivery and lift planning
- Pre-agreed structural interfaces and hook-up methodology
- Fully inspected and electronically auditable QC records
- Cx Level Test Scrips and Factory Acceptance Testing
- FAT testing and full documentation package
- Pre Commissioning support and attendance available
- Programme certainty
- Improved quality and reliability
- Solutions integration
- Offsite Cx Pre Commissioning
- Reduced site risk and disruption
- Simplified maintenance
- Enhanced compliance and traceability
- Removal of site working hours and hot works

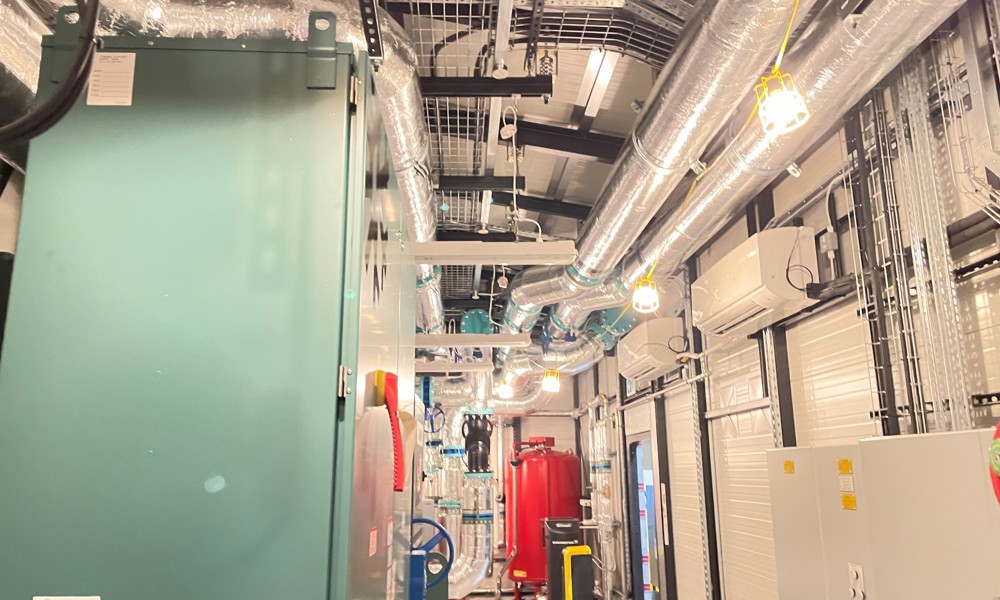

Packaged Plant Room internal

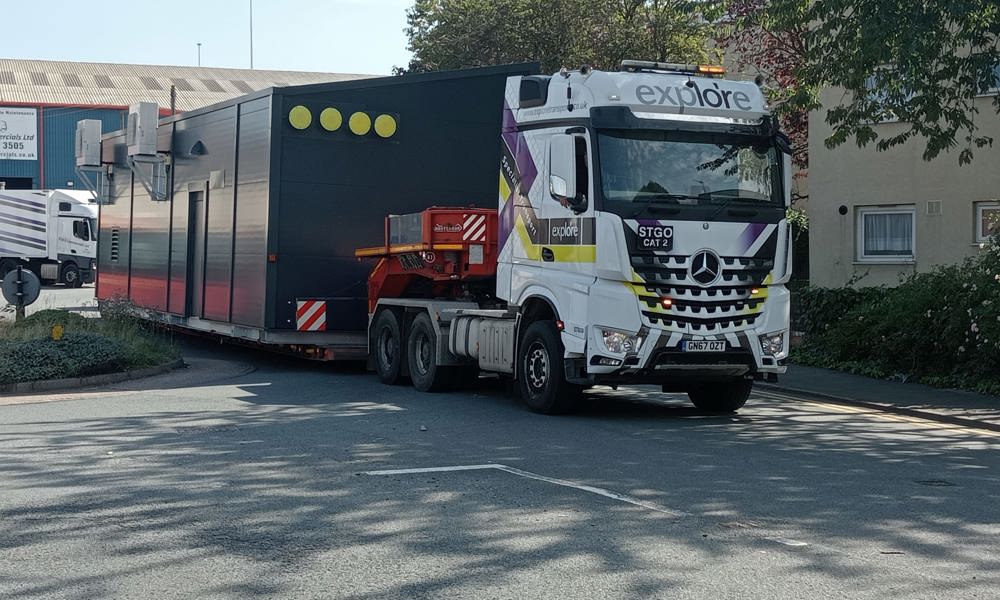

Packaged Plant Room delivery

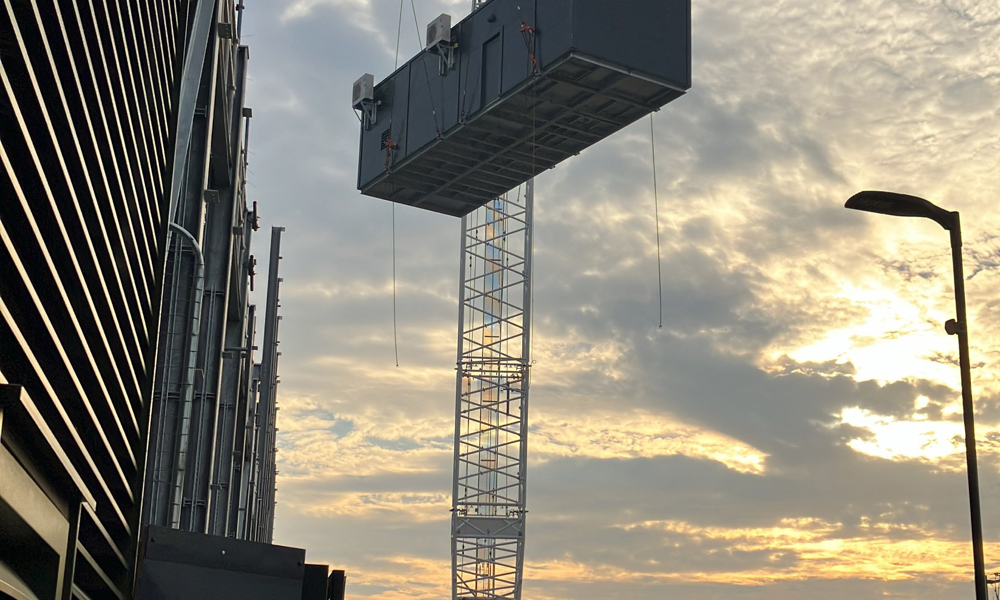

Packaged Plant Room craneage

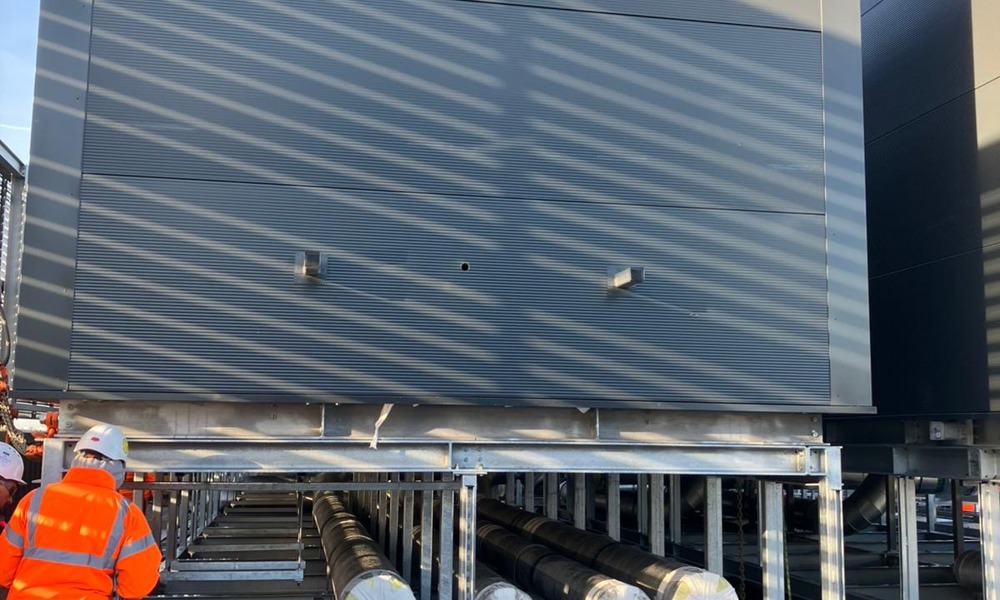

Packaged Plant Room support gantry

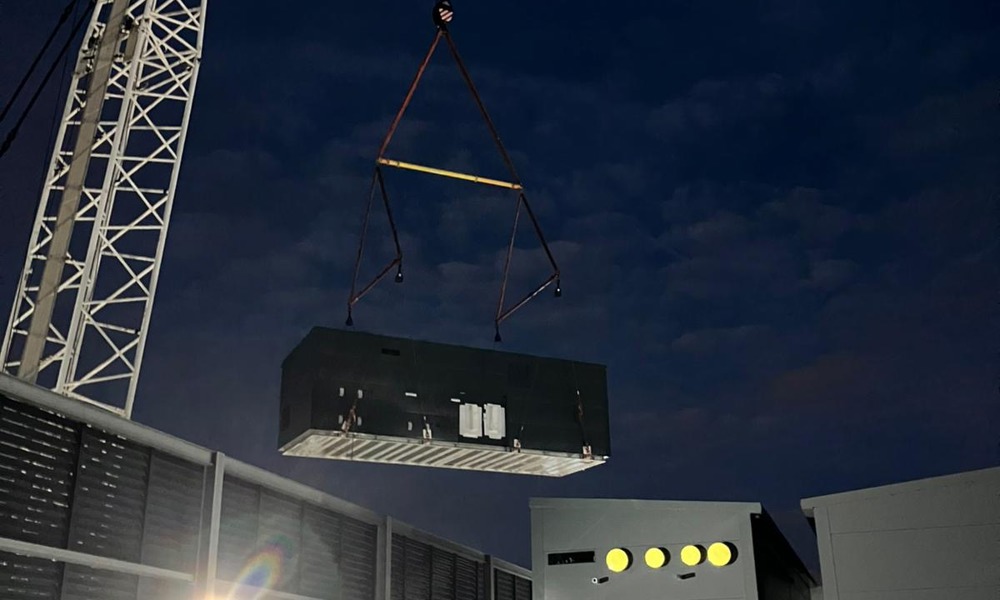

Packaged Plant Room craneage
Packaged Plant Room craneage
